6 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-3010

Brand Name : Chip mounter Ke-3010

Model Number : SMT Machinery Pick and Place Machine

Certification : CE

Place of Origin : CHINA

MOQ : Chip mounter Ke-3010 1 set

Price : 30000-100000usd/set Chip mounter Ke-3010

Payment Terms : TT,western union,paypal and so on

Supply Ability : 300 sets per month Chip mounter Ke-3010

Delivery Time : within 15 days after payment

Packaging Details : SMT Pick and place machine packing with wooden case

Usage : Chip mounter Ke-3010

Theory : smt pick and place machine

skype : sensenhenhao

whastapp/wechat : +8613424013606

substrate size : L330 x W250 mm

Applicable chip size : 0402 (British 01005) chip ~ 33.5mm square components

Mounting accuracy : ± 0.5mm/CHIP

External dimension : 1,500 x 1,580 x 1,500 mm

speed : 23500CPH

IC*5 : 9,000CPH

Chip IPC9850 : 18,500CPH

Contact Now

Juki smt pick and place machine Ke-3010/Chip mounter Ke-3010/smd pick and place machine

Chip mounter Ke-3010 Features:

  1. Continued Evolution of the KE Series

    Chip

    1. 23,500CPH chip (Laser centering/Optimum)

    2.18,500CPH (Laser centering / IPC9850)

    3.IC 9,000CPH (Vision centering/MNVC option)

    4.From 0402(01005) to 33.5mm square components

    5.One multi-nozzle laser head (6 nozzles)

    6.The use of electronic double tape feeders enables mounting of a maximum of 160 component types.

    7.High-speed, on-the-fly vision centering

    (When using both high-resolution camera and MNVC. (option))

    8.Longer sized PWB in X axis(option)

Chip mounter Ke-3010 Specifications:

Board size

M size (330×250 mm)

L size (410×360 mm)

L-Wide size (510×360 mm) *1

XL size (610×560 mm)

Applicability to long PWB (L size)*2

800×360mm

Applicability to long PWB (L-Wide size)*2

1,010×360mm

Applicability to long PWB (XL size)*2

1,210×560mm

Component height

6mm

12mm

Component size

Laser recognition

0402(01005)~33.5mm

Vision recognition

Standard camera

3mm*3~33.5mm

High-resolution camera

1.0×0.5mm*4~20mm

Placement speed

Chip

Optimum

23,500CPH

IPC9850

18,500CPH

IC*5

9,000CPH *6

Placement accuracy

Laser recognition

±0.05 mm (±3σ)

Vision recognition

±0.04 mm

Feeder inputs

Max.160 in case of 8mm tape
(on a Electric double tape feeder)*7

*1

L-Wide size is optional

*2

Applicability to long PWB is optional.

*3

When using MNVC. (option)

*4

KE-3010 : When using both high-resolution camera and MNVC. (option)

*5

Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)

*6

Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010.

*7

When using Electric double tape feeder EF08HD.

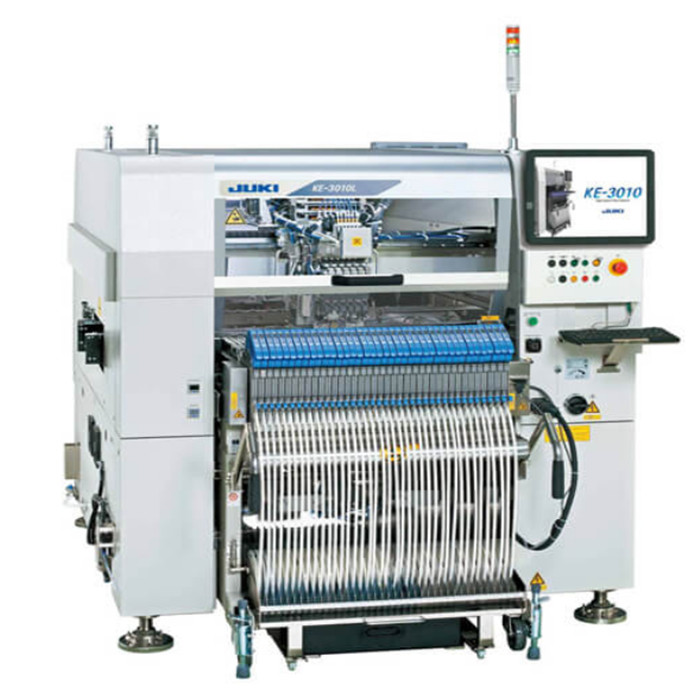

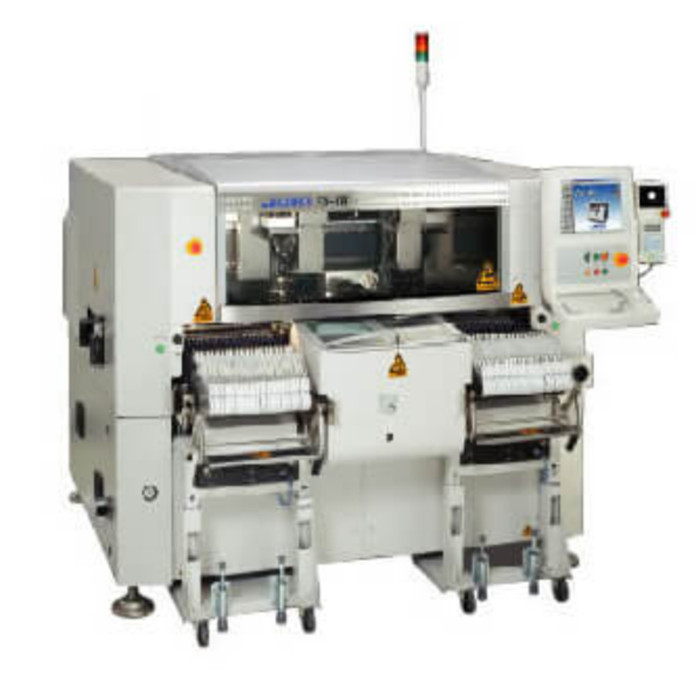

Chip mounter Ke-3010 picture show:

6 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-30106 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-30106 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-30106 nozzles PWB 23500CPH SMT Chip Mounter Juki Ke-3010
